RTK Installation Guide B -- Adding RTK to the app

Prerequisite

Before proceeding, confirm that the RTK is physically installed in a suggested spot as illustrated in RTK Installation Guide A -- Finding the Spot.

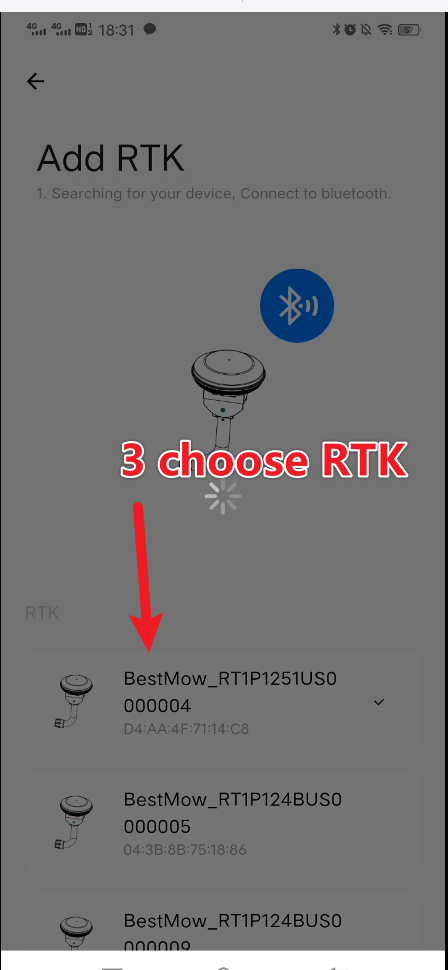

Currently, adding an RTK base station via mobile phone involves the following 3 steps:

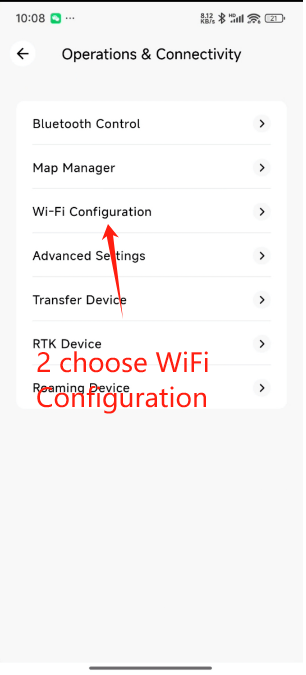

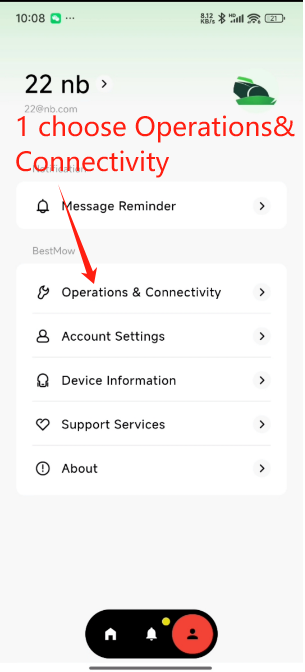

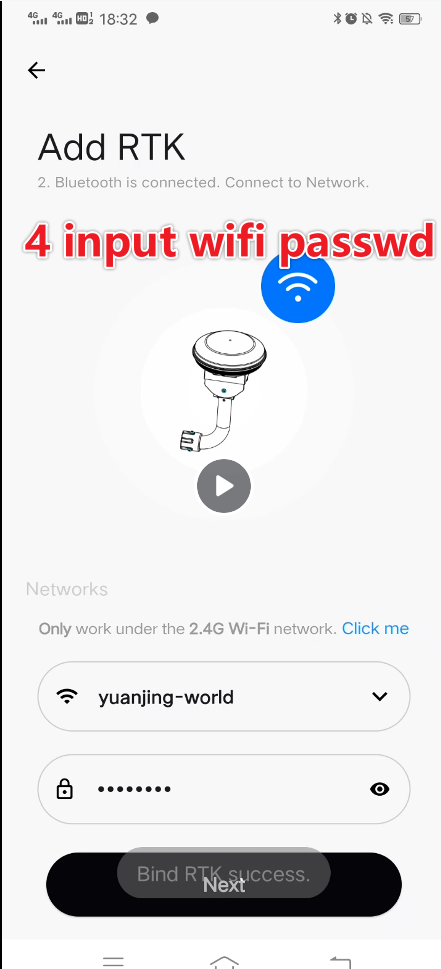

a. Connect the base station to a WiFi network.

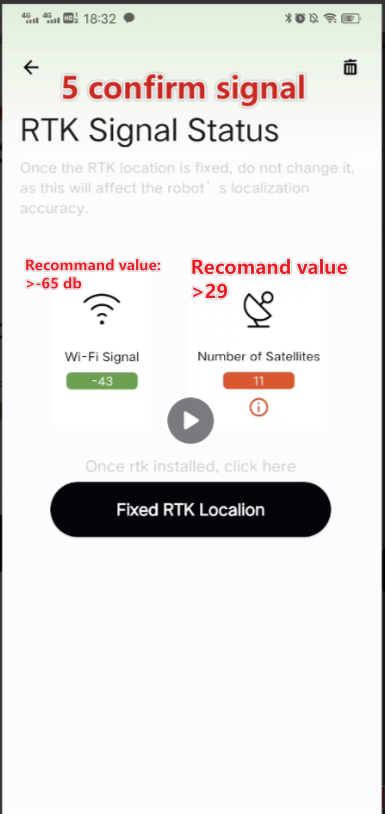

b. Signal check：

• Satellite count must be >= 29
• WiFi signal must be >= -70 dBm (recommended 0 to -65 dBm)

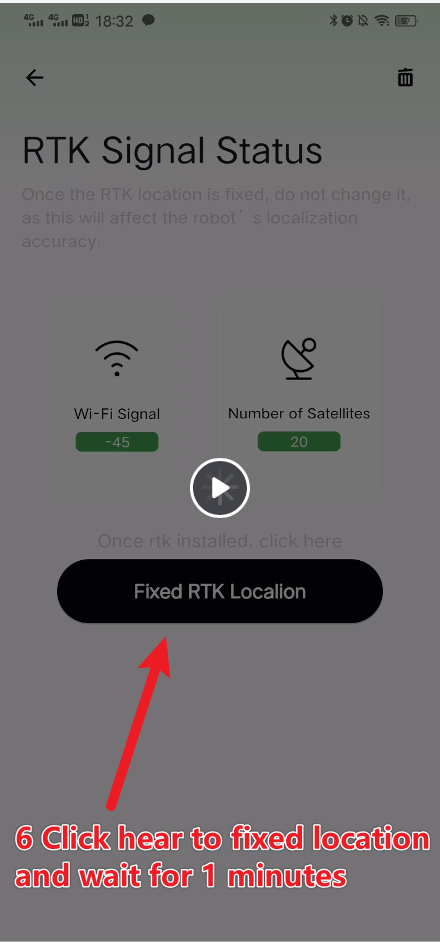

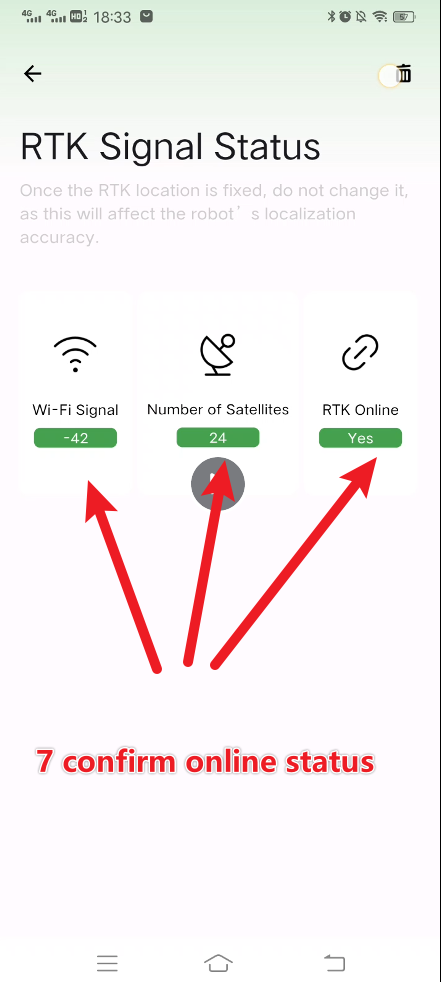

c. Set the location

Note:

• Steps 1 and 2 are used to determine the ideal locations; verify the signal is correct before finalizing the location.
• If the signal does not meet requirements (e.g., insufficient satellites or weak WiFi signal), drilling holes in the wall may lead to installation failure and user complaints.

Adding RTK Device (From start to finish)
